- Contact mounting: 3NO + 1NC
- Switching current range: 3 mA – 8 A
- Coil voltage: 5 – 110V DC
- Nominal coil power: 0.82 W
- Dimensions: 53 x 36 x 10.9 mm
Elesta

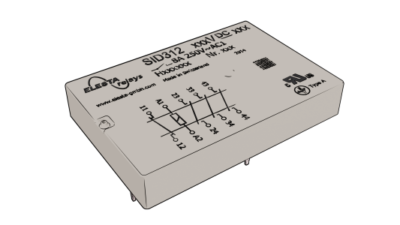

SID4 Series
Made in Switzerland
Ask for a Quote
SISF 2 Series
- Contact mounting: 1NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 60V DC
- Nominal coil power: 0.45 W
- Dimensions: 29.2 x 16.6 x 13 mm
Made in Switzerland
Ask for a Quote

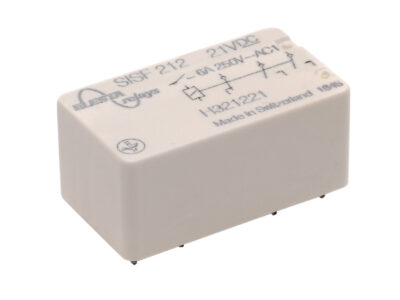

SISF 3 Series
- Contact mounting: 2NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 60V DC
- Nominal coil power: 0.8 W
- Dimensions: 29.2 x 16.6 x 13 mm
Made in Switzerland
Ask for a Quote

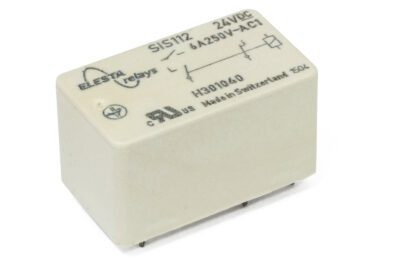

SIS 2 Series
- Contact mounting: 1NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 60V DC
- Nominal coil power: 0.27 W
- Dimensions: 29.2 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote
SIS 2 Sensitive Series
- Contact mounting: 1NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 3 – 60V DC
- Nominal coil power: 0.2 W
- Dimensions: 29.2 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote

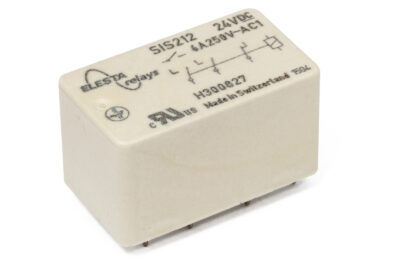

SIS 3 Series
- Contact mounting: 2NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 110V DC
- Nominal coil power: 0.6 W
- Dimensions: 29.2 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote
SIS 3 Sensitive Series
- Contact mounting: 2NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 110V DC
- Nominal coil power: 0.4 W
- Dimensions: 29.2 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote

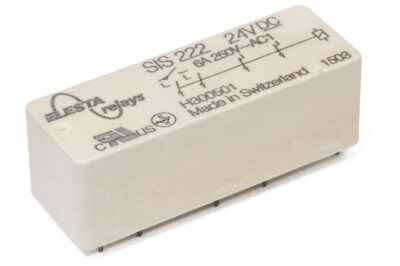

SIS 4 Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 5 – 110V DC
- Nominal coil power: 0.5 W
- Dimensions: 48 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote
SIS 4 Sensitive Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 3 – 60V DC
- Nominal coil power: 0.33 W
- Dimensions: 48 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote

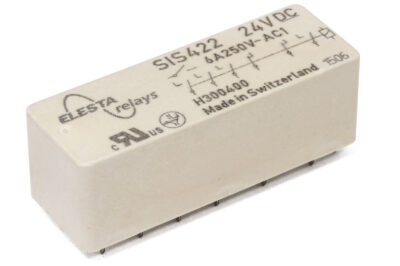

SIS 6 Series
- Contact mounting: 4NO + 2NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.66 W
- Dimensions: 48 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote
SIS 6 Sensitive Series
- Contact mounting: 4NO + 2NC
- Switching current range: 3 mA – 6 A
- Coil voltage: 3 – 60V DC
- Nominal coil power: 0.44 W
- Dimensions: 48 x 16.6 x 16.5 mm
Made in Switzerland
Ask for a Quote

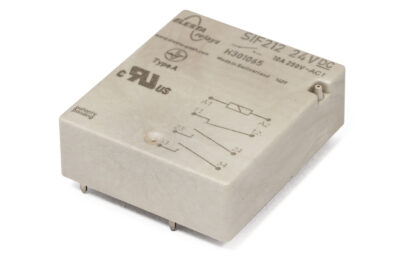

SIF 3 Series
- Contact mounting: 2NO + 1NC
- Switching current range: 3 mA – 10 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.6 W
- Dimensions: 33.65 x 29.25 x 10.9 mm
Made in Switzerland
Ask for a Quote

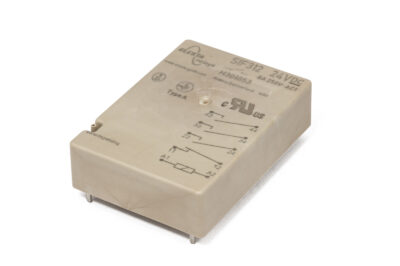

SIF 4 Series
- Contact mounting: 3NO + 1NC or 2NO + 2NC
- Switching current range: 3 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.7 W
- Dimensions: 41 x 29.4 x 10.9 mm
Made in Switzerland
Ask for a Quote

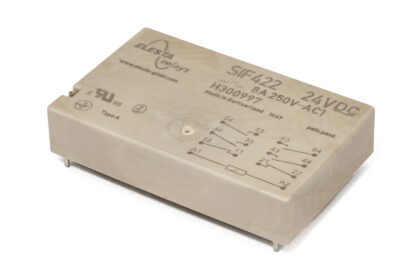

SIF 6 Series
- Contact mounting: 4NO + 2NC
- Switching current range: 3 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.66 W
- Dimensions: 53.6 x 33.5 x 10.9 mm
Made in Switzerland
Ask for a Quote

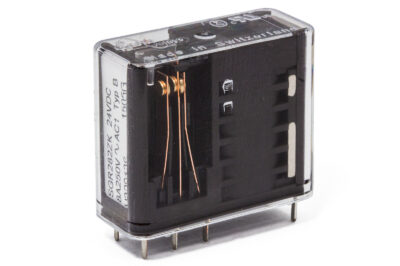

SGR 282 ZK Series
- Contact mounting: 2CO or 1NO + 1NC
- Switching current range: 4 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.7 W
- Dimensions: 30.2 x 12.7 x 25.6 mm
Made in Switzerland
Ask for a Quote

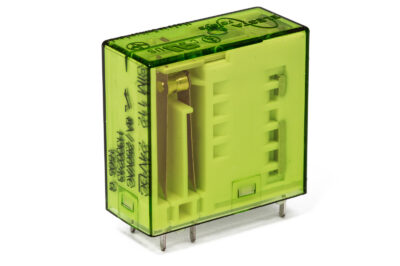

SIM 2 Series
- Contact mounting: 1NO + 1NC
- Switching current range 10 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.5 W
- Dimensions: 27.4 x 12.5 x 26.2 mm
Made in Switzerland
Ask for a Quote

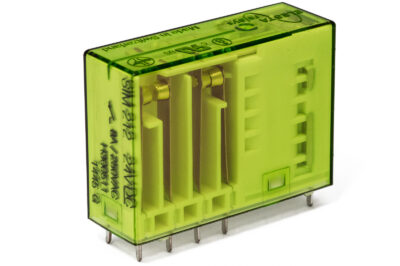

SIM 3 Series
- Contact mounting: 2NO + 1NC
- Switching current range: 10 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.75 W
- Dimensions: 36.1 x 12.5 x 26.2 mm
Made in Switzerland
Ask for a Quote

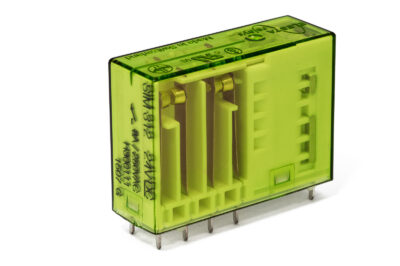

SIM 4 Series
- Contact mounting: 2NO + 2NC
- Switching current range: 10 mA – 8 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 1 W
- Dimensions: 36.1 x 12.5 x 26.2 mm
Made in Switzerland
Ask for a Quote

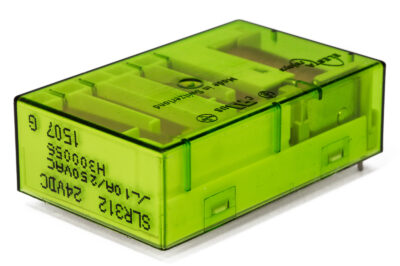

SLR 4 Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.6 W
- Dimensions: 53.3 x 33.4 x 16.5 mm
Made in Switzerland
Ask for a Quote

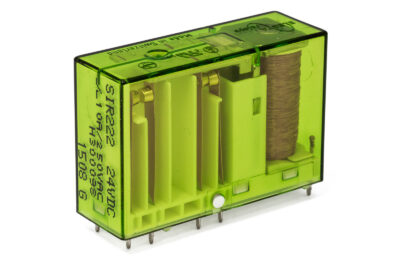

SIR 4 Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.6 W
- Dimensions: 46.4 x 16 x 30.7 mm
Made in Switzerland
Ask for a Quote
SIR 4 Sensitive Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 60V DC
- Nominal coil power: 0.36 W
- Dimensions: 46.4 x 16 x 30.7 mm
Made in Switzerland
Ask for a Quote

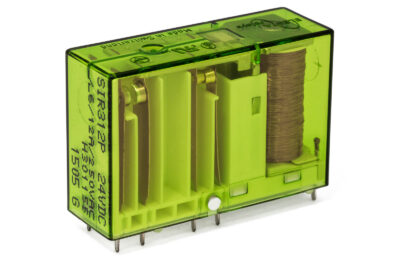

SIR 4 Power Series
- Contact mounting: 2NO + 2NC or 3NO + 1NC
- Switching current range: 5 mA – 12 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.75 W
- Dimensions: 46.4 x 16 x 30.7 mm
Made in Switzerland
Ask for a Quote

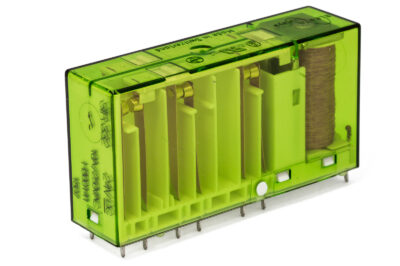

SIR 6 Series
- Contact mounting: 5NO + 1NC or 4NO + 2NC or 3NO + 3NC
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 110V DC
- Nominal coil power: 0.75 W
- Dimensions: 58.9 x 16 x 30.7 mm
Made in Switzerland
Ask for a Quote
SIR 6 Sensitive Series
- Contact mounting: 5NO + 1NC or 4NO + 2NC or 3NO + 3NC
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 60V DC
- Nominal coil power: 0.5 W
- Dimensions: 58.9 x 16 x 30.7 mm
Made in Switzerland
Ask for a Quote

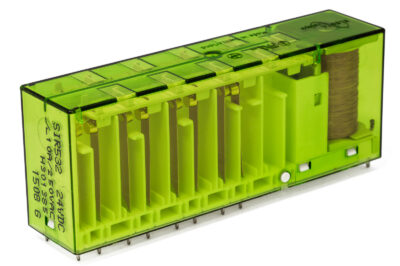

SIR 8 Series
- Contact mounting: 8 poles freely configurable
- Switching current range: 10 mA – 10 A
- Coil voltage: 6 – 220V DC
- Nominal coil power: 1.3 W
- Dimensions: 85.5 x 20 x 32 mm
Made in Switzerland
Ζητήστε Προσφορά

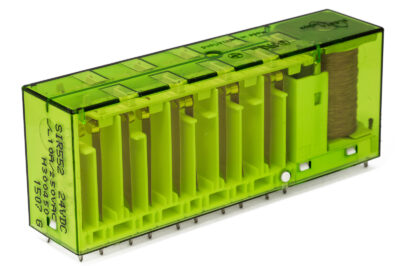

SIR 10 Series
- Contact mounting: 10 poles freely configurable
- Switching current range: 10 mA – 10 A
- Coil voltage: 3 – 220V DC
- Nominal coil power: 1.3 W
- Dimensions: 85.5 x 20 x 32 mm
Made in Switzerland
Ask for a Quote

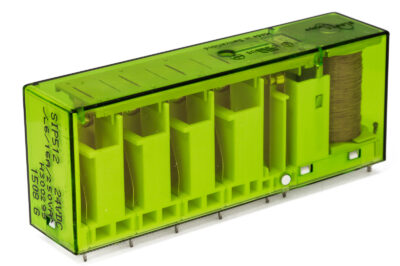

SIP 6 Series
- Contact mounting: 4 NO as power contacts, 1NO + 1NC or 2NC as signal contacts
- Switching current range: 5 mA – 16 A
- Coil voltage: 3 – 220V DC
- Nominal coil power: 1.3 W
- Dimensions: 84.6 x 20 x 32 mm
Made in Switzerland
Ask for a Quote
